3D Wire Mesh Fence: Galvanized 3D Welded Mesh Fence with Square, Rectangular, or Round Posts
3D wire mesh fence is a welded mesh fencing system with V-bend reinforcements for additional strength and stability. Manufactured from galvanized steel wires with diameters of 3.5 mm to 6.0 mm, it features mesh openings of 50 × 150 mm or 75 × 150 mm. Panels are supported by square, rectangular, or round posts and finished with hot-dip galvanizing, powder coating, or PVC coating for corrosion resistance. Used in industrial, residential, and infrastructure projects, it provides a durable, anti-climb perimeter security solution for diverse applications.
Specifications
1. Panel Dimensions
- Height: 1.2 m – 2.4 m
- Width: 2.0 m – 3.0 m
- Mesh Opening: 50 × 150 mm, 75 × 150 mm, or custom sizes
- Wire Diameter: 3.5 mm – 6.0 mm
- Design: Welded mesh panels reinforced with V-bends for rigidity
2. Fence Posts
- Post Types: Square, Rectangular, Round
- Sizes: 40 × 60 mm, 60 × 60 mm, 80 × 80 mm
- Height: 1.5 m – 3.0 m
- Wall Thickness: 1.5 mm – 3.0 mm
3. Surface Treatment
- Hot-Dip Galvanized: Zinc coating 60 – 450 g/m²
- Powder Coated or PVC Coated: Thickness 0.6 – 1.2 mm
- Color Options: Multiple RAL colors available
4. Accessories
- Metal clips, clamps, and fasteners
- Anti-UV powder coating
- Optional Y- or V-shaped extensions for barbed or razor wire
Applications

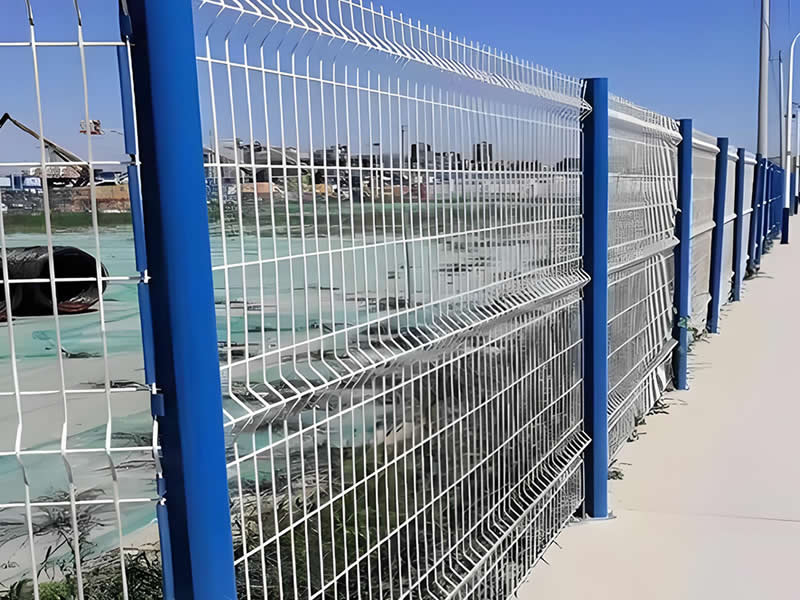

- Industrial and Commercial Perimeter Fencing
- Residential Boundary and Property Protection
- Public Parks and Recreational Facility Enclosures
- Airports, Schools, Warehouses, and Utilities
- Infrastructure Projects and Anti-Climb Barriers

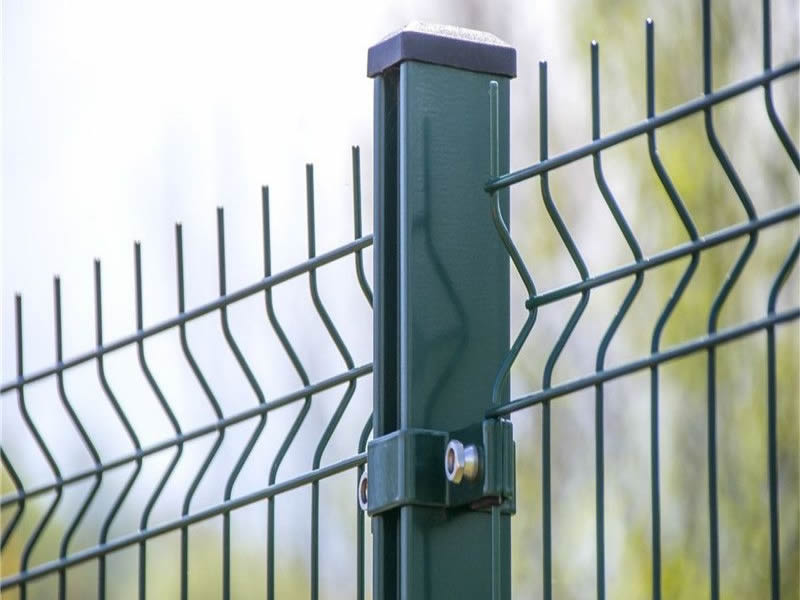

Custom size 3D welded mesh fence

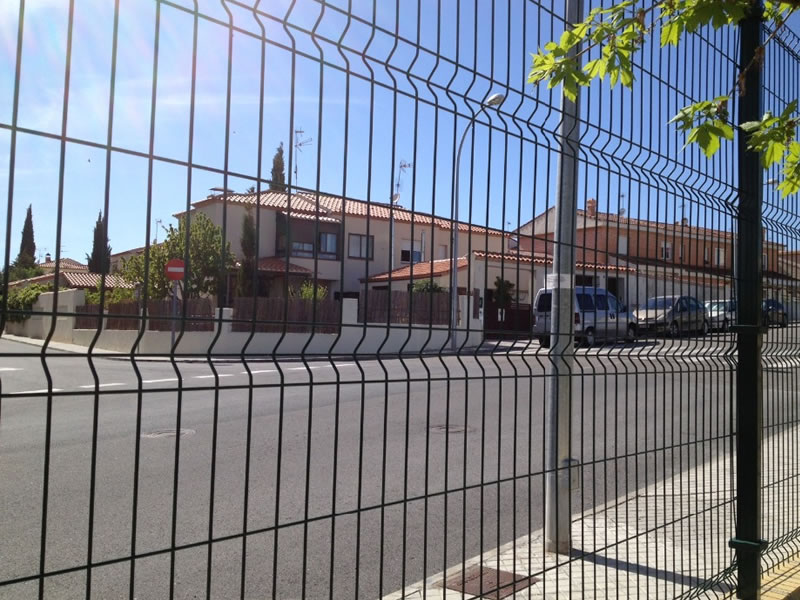

3D mesh fencing for residential properties

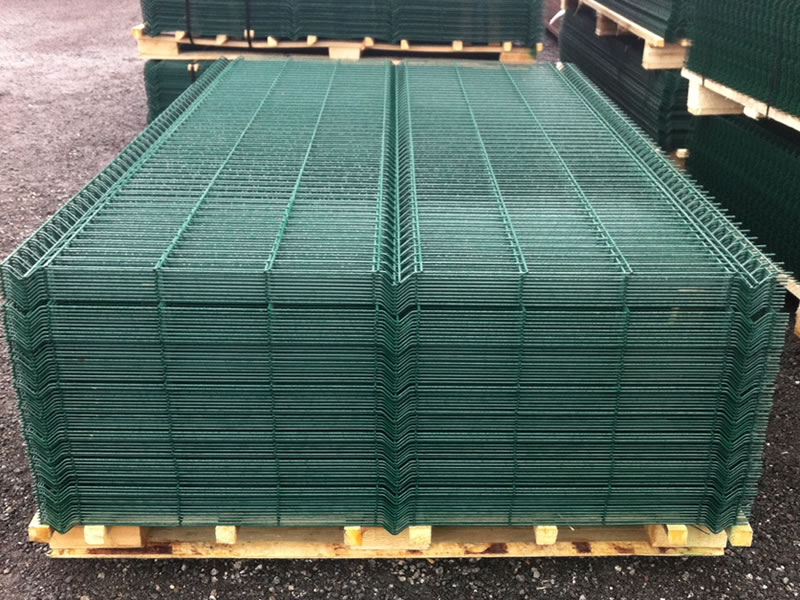

PVC 3D welded mesh fence panels

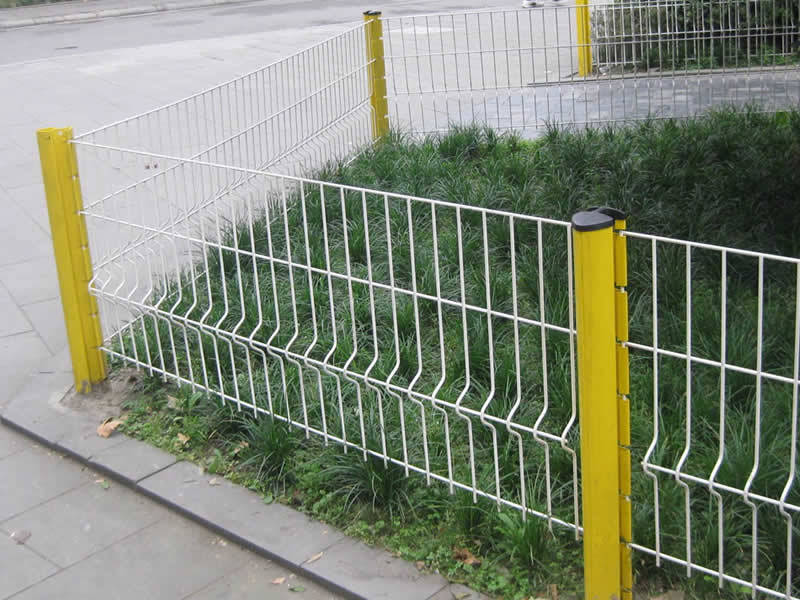

3D welded wire fence for parks

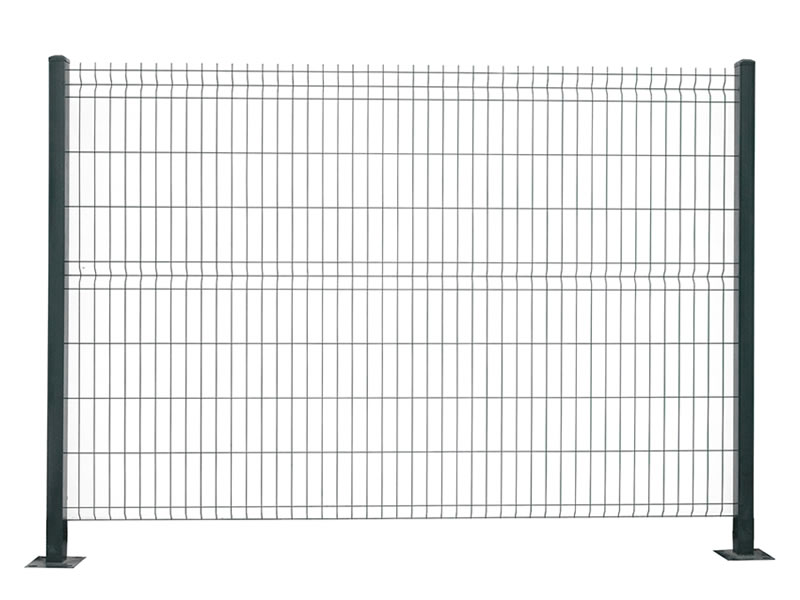

Powder coated 3D welded mesh fence panels
