Double Wire Mesh Fence with 6 mm and 8 mm Horizontal Wires for High Security
Double wire mesh fence is a rigid welded fencing system made with two horizontal wires and one vertical wire for extra strength. Panels are manufactured from galvanized or powder-coated steel with mesh apertures typically 50 × 200 mm. Heights range from 1.2–2.4 m, supported by square posts with clamps and security fasteners. This fence is widely used for industrial, residential, sports, and public facilities, offering durable perimeter security, anti-climb performance, low maintenance, and quick installation.
Specifications
1. Material
- Low carbon steel wire, pre-galvanized or hot-dip galvanized
- Optional powder-coating in RAL colors for corrosion resistance
2. Panel Size
- Height: 1200 mm – 2400 mm (1.2–2.4 m)
- Width: 2000 mm – 3000 mm (2.0–3.0 m)
- Wire spacing: 50 × 200 mm standard mesh aperture
3. Wire Diameter
- Horizontal double wires: 6 mm + 6 mm or 8 mm + 8 mm
- Vertical wire: 5 mm, 6 mm, or 8 mm
4. Posts
- Square post size: 60 × 60 mm, 60 × 80 mm, or 80 × 80 mm
- Installation: in-ground with concrete or flange-mounted with base plates
- Post caps and anti-tamper fasteners included
5. Surface Finish
- Hot-dip galvanization: 42–80 µm zinc coating
- Powder-coated finish for weather and rust resistance
6. Accessories
- Metal clips/clamps for panel-to-post connection
- Security bolts and tamper-proof nuts
- Optional V-top extensions for barbed or razor wire
Applications
- Industrial site and warehouse perimeter fencing
- Residential property boundaries and gardens
- Sports facilities, schools, and public infrastructure
- Transport hubs and high-security areas

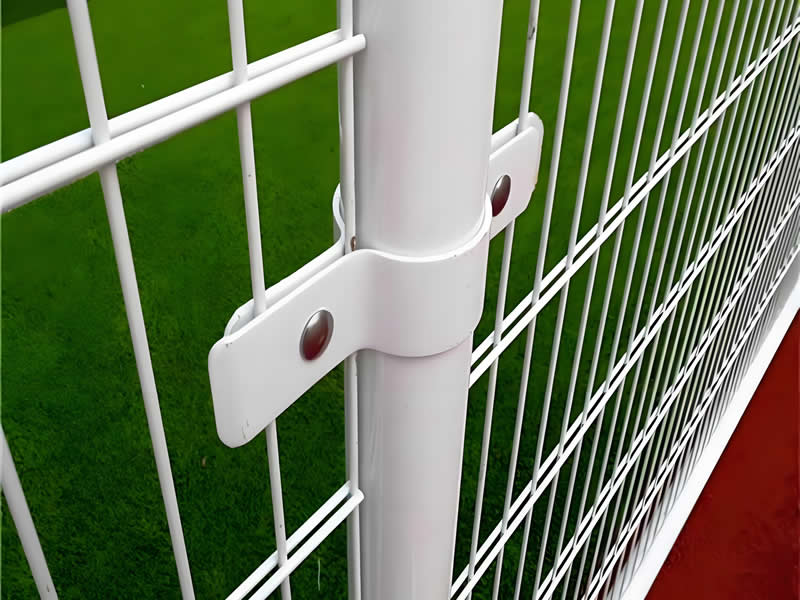

Sports Facility Double Wire Welded Mesh Fence

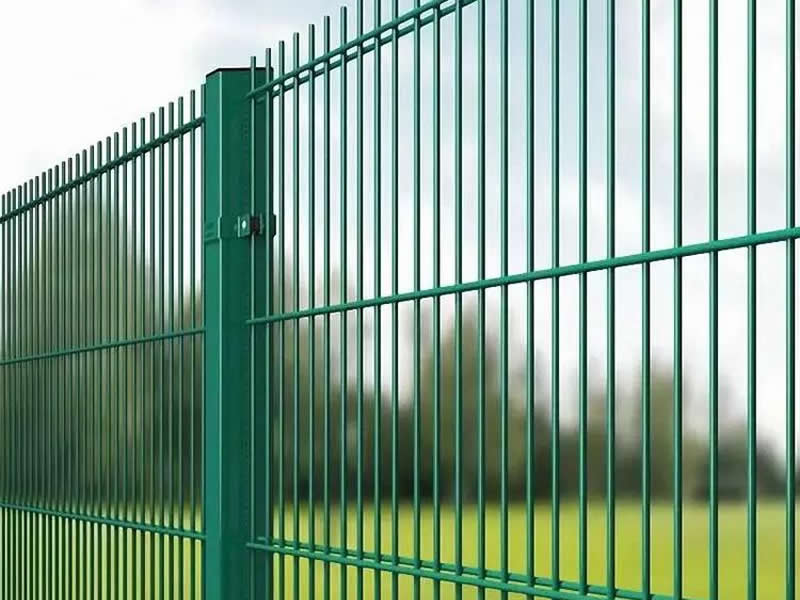

double welded wire fence with square post installation

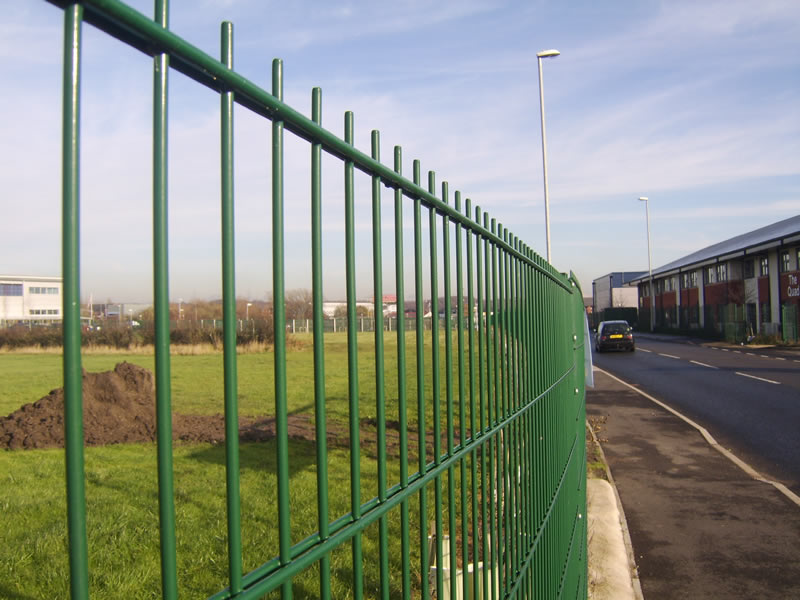

twin horizontal wire mesh fence panels for public parks
Powder-Coated Double Wire Security Fence

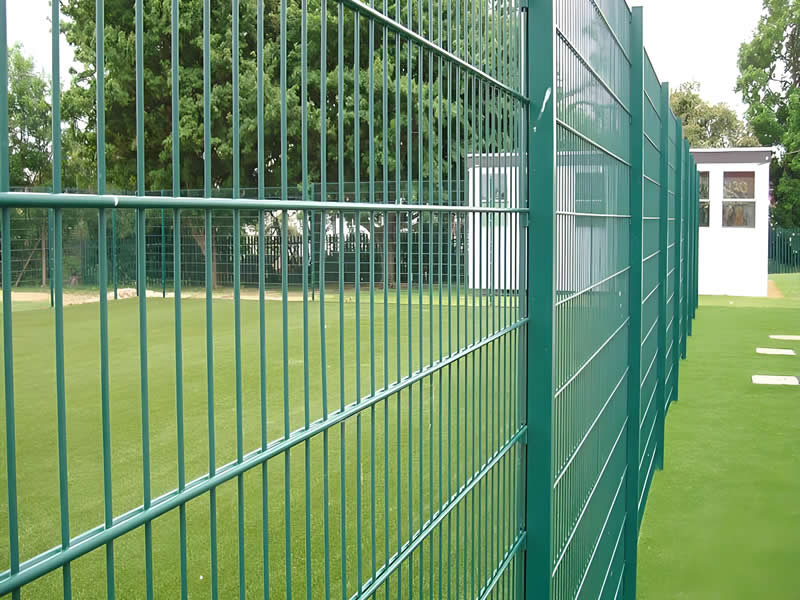

powder-coated twin horizontal wire fence for schools
