Steel Picket Fence Panels: Galvanized & Powder-Coated Tubular Picket Fencing 1.2–2.4 m
Steel picket fences are durable welded metal fencing systems used for residential, commercial, and public perimeter security. Manufactured from galvanized or powder-coated steel, panels feature square or round rails with vertical tubular pickets. Standard heights range from 1.2–2.4 m with picket spacing 90–120 mm and tube sizes 25–50 mm. Installed with square or round posts, they provide long-lasting boundary protection and controlled access for properties, schools, parks, and industrial facilities, ensuring easy installation and low maintenance.
Specifications
1. Material
- Galvanized steel (hot-dip or pre-galvanized)
- Powder-coated finish available for corrosion resistance
2. Panel Size
- Height: 1200 mm – 2400 mm (1.2 m – 2.4 m)
- Width: 1800 mm – 3000 mm (1.8 m – 3.0 m)
3. Pickets
- Shape: Square or round tubular pickets
- Size: 25 × 25 mm – 50 × 50 mm square; Ø20–Ø30 mm round
- Spacing: 90 mm – 120 mm center-to-center
- Picket top: Spear, flat, or domed options
4. Rails
- Horizontal rails: 2–3 per panel
- Tube size: 30 × 30 mm – 40 × 40 mm or round equivalents
5. Posts
- Shape: Square or round
- Size: 50 × 50 mm – 100 × 100 mm square; Ø60–Ø114 mm round
- Installation: In-ground with concrete or flange-mounted with base plates
6. Surface Finish
- Hot-dip galvanization (zinc coating 42–80 µm)
- Powder-coating in RAL colors for aesthetics and rust prevention
7. Accessories
- Brackets or welded connections
- Post caps, base plates, and anti-tamper fasteners
Applications
- Residential property boundaries
- Commercial premises and office parks
- Schools, playgrounds, and public facilities
- Government areas and industrial complexes

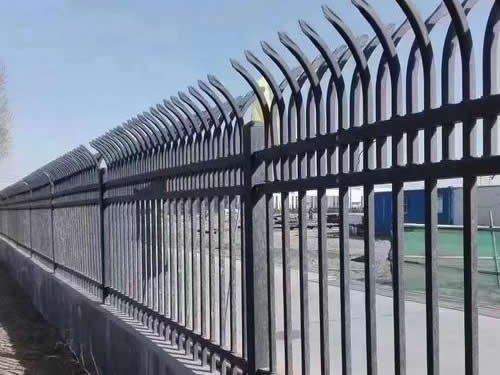

anti-climb tubular steel fencing with spear tops

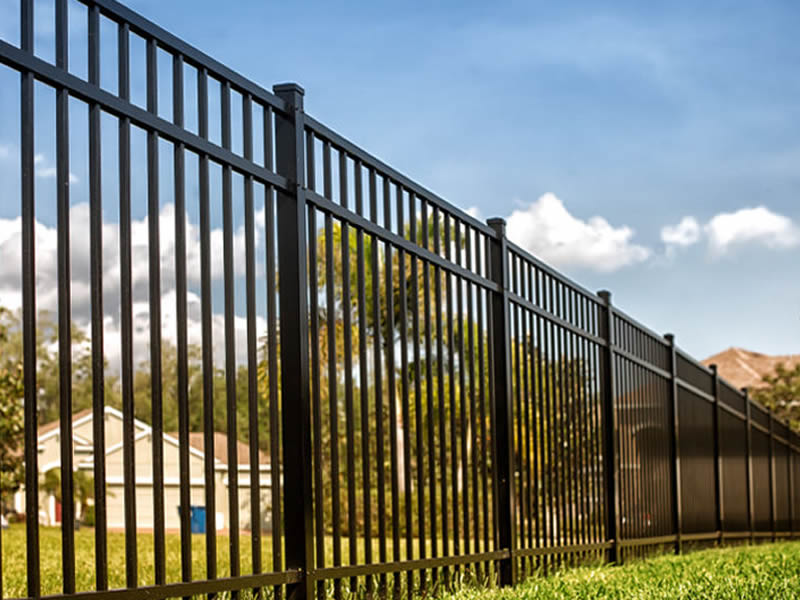

Square Tubular Steel Picket Fencing

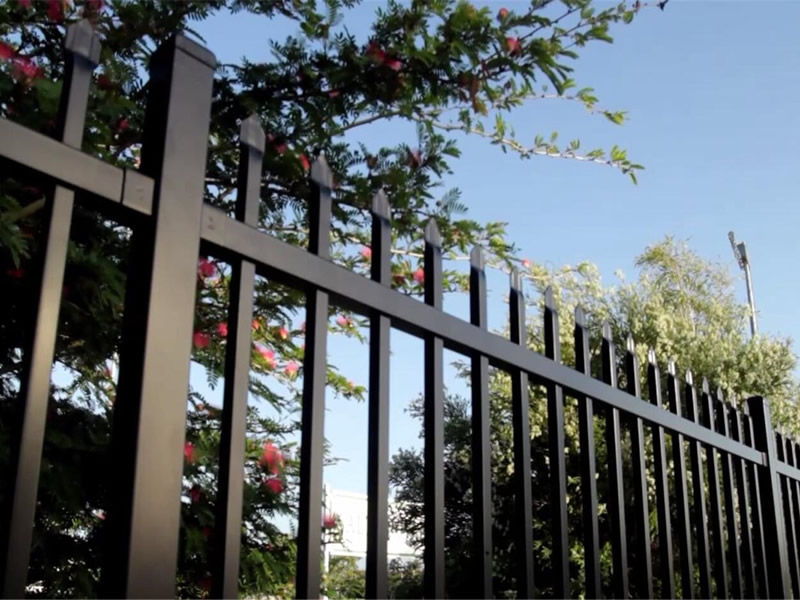

welded steel picket fence with flat tops

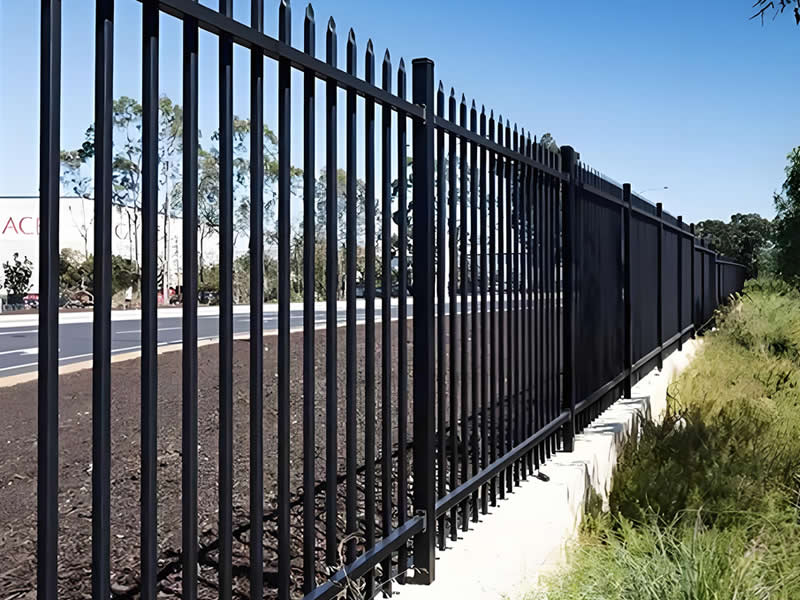

residential tubular steel fencing for property boundaries

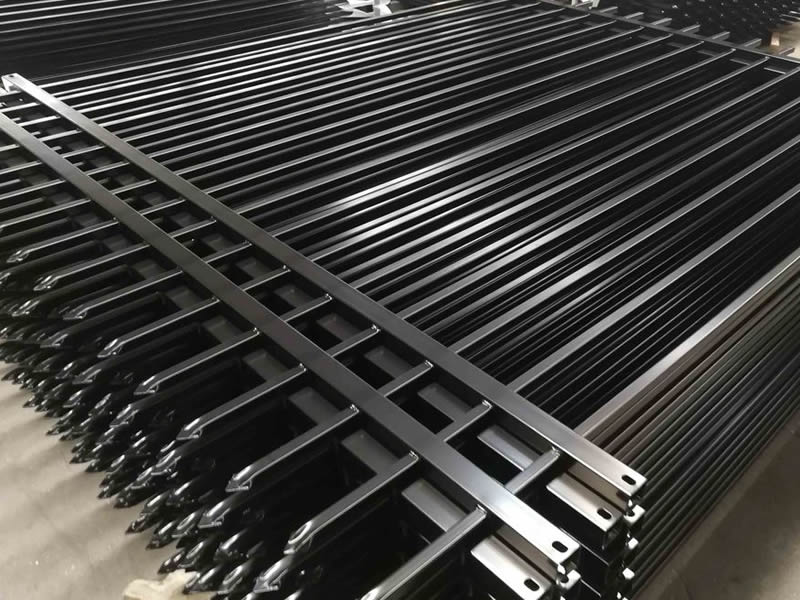

spear-top steel picket fence panels with welded rails
