Crowd Control Barriers: Galvanized or Powder-Coated with Hooks and Flat or Bridge Feet
Crowd control barriers are portable steel barricades designed to manage pedestrian flow and ensure public safety. Made from galvanized or powder-coated steel, they feature interlocking hooks and flat or bridge feet for stability. Panels typically measure 2.0–2.5 m in length and 1.0–1.2 m in height with tube frames Ø25–50 mm. Used in events, construction zones, parades, and traffic control, these barriers provide durable perimeter management, easy installation, and reusability for temporary or permanent crowd control needs.
Specifications
1. Material
- Galvanized steel (hot-dip or electro-galvanized)
- Powder-coated finish available for corrosion resistance
2. Frame Dimensions
- Length: 2000 mm – 2500 mm (2.0 m – 2.5 m)
- Height: 1000 mm – 1200 mm (1.0 m – 1.2 m)
- Tube diameter: 25 mm – 50 mm
- Wall thickness: 1.2 mm – 2.0 mm
3. Vertical Infill Bars
- Quantity: 12–20 tubes per panel
- Spacing: 90 mm – 120 mm
- Tube diameter: 12 mm – 20 mm
4. Feet Types
- Flat feet for surfaces like pavements

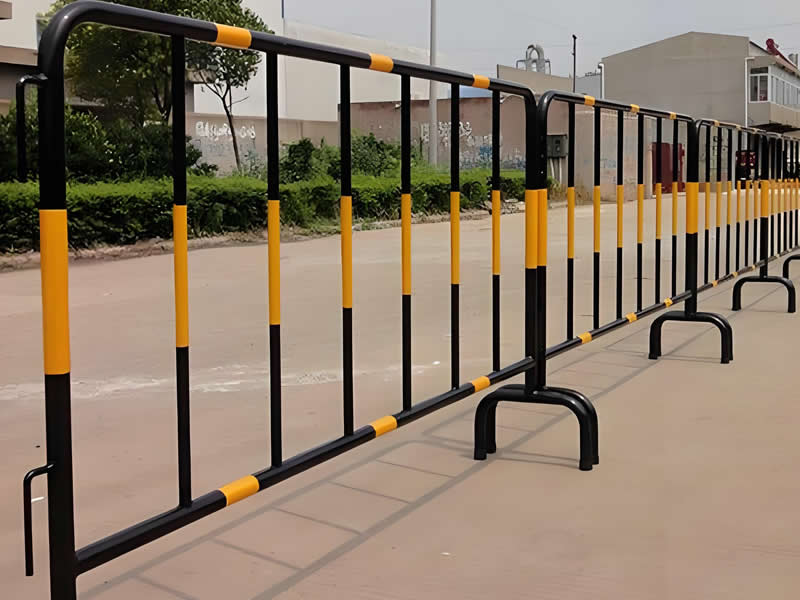

- Bridge feet for uneven ground stability
- Removable bolt-on or welded options
5. Surface Finish
- Hot-dip galvanization: 42–80 µm zinc coating
- Powder-coated: custom colors available
6. Connections
- Interlocking hook and loop system
- Secure linking with couplers for extended runs
7. Accessories
- Detachable feet for compact storage
- Custom logo plates or reflective strips (optional)
Applications
- Public events and concerts
- Sports arenas and festivals
- Roadway traffic control
- Construction site safety perimeters
