Chain Link Fence: Galvanized and PVC Diamond Mesh for Security Fencing Projects
Chain link fence is a woven wire mesh with diamond-shaped openings for perimeter security and property demarcation. Made from galvanized or PVC-coated steel wire, it is available in multiple mesh sizes, wire gauges, and height options from 0.9 m to 3.6 m. Edges include knuckled or barbed types for safety or added protection. Used for residential yards, sports fields, highways, airports, industrial zones, and farms, it offers a durable, low-maintenance, and cost-effective fencing solution with optional security enhancements.
Specifications
1. Wire Material and Finish
- Materials: Low-carbon steel wire, galvanized steel wire, PVC-coated wire
- Galvanized Coating: 30–366 g/m² (1–13 oz/ft²)
- PVC Coating Thickness: 0.4–1.0 mm over galvanized core
- Finish Options: Hot-dip galvanized, electro-galvanized, or vinyl/PVC-coated
2. Mesh Aperture Size
- Diamond Mesh Opening Sizes:
- 25 × 25 mm (1" × 1")
- 40 × 40 mm (1.5" × 1.5")
- 50 × 50 mm (2" × 2")
- 60 × 60 mm (2.5" × 2.5")
- 75 × 75 mm (3" × 3")
- Mesh Pattern: Diamond-shaped woven wire
3. Wire Diameter (Gauge)
- Residential use: 1.8–2.5 mm (13–15 gauge)
- Industrial/security use: 2.7–4.5 mm (8–12 gauge)
4. Fence Height and Roll Length
- Heights: 0.9 m, 1.2 m, 1.5 m, 1.8 m, 2.0 m, 2.4 m, 3.0 m, up to 3.6 m (3–12 ft)

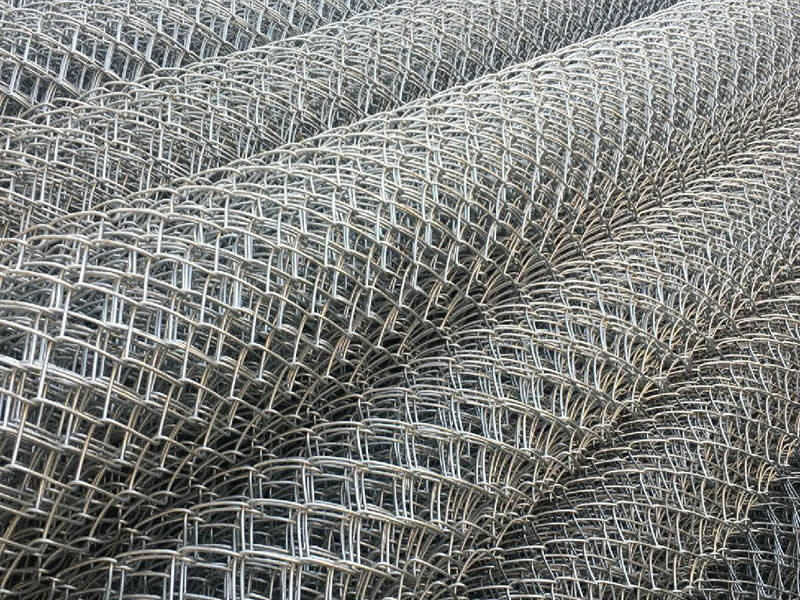

- Roll Lengths: 10 m, 15 m, 20 m (custom lengths available)
5. Edge and Selvage Types
- Knuckle-Knuckle (K-K) – standard safety edges
- Knuckle-Barbed (K-B) – one side barbed
- Barbed-Barbed (B-B) – both sides barbed for maximum security
6. Post Types and Accessories
- Line Posts: Round, square, or peach posts
- Terminal/Corner Posts: Heavier gauge round or square posts
- Common Post Diameters: 42 mm, 48 mm, 60 mm, 76 mm, 89 mm (1.66"–3.5")
- Fittings & Accessories: Tension bands, clamps, gates, braces, barbed or razor wire (optional)
Applications
- Residential property boundaries and garden enclosures
- Industrial and commercial perimeter security
- Sports fields and playground fencing
- Airports, railways, and military zones
- Temporary fencing for events and construction sites
- Farm and livestock enclosures

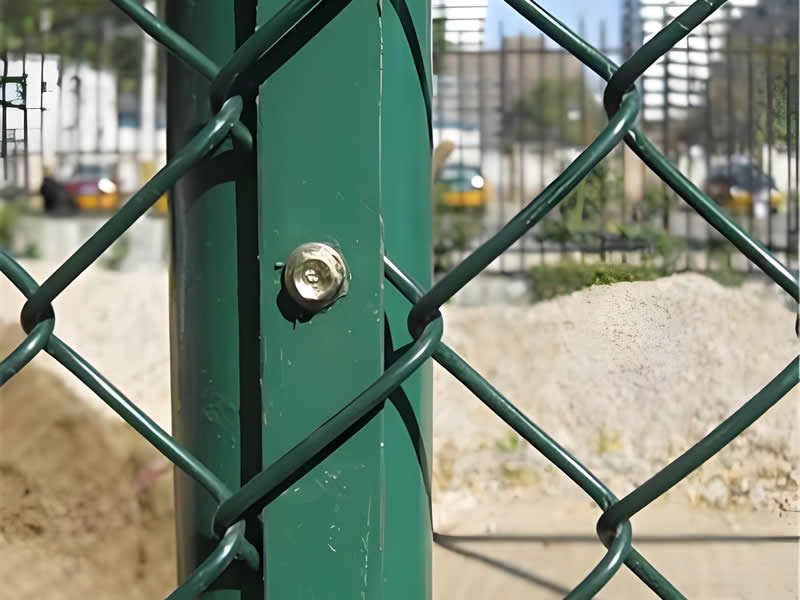

PVC coated diamond mesh fencing

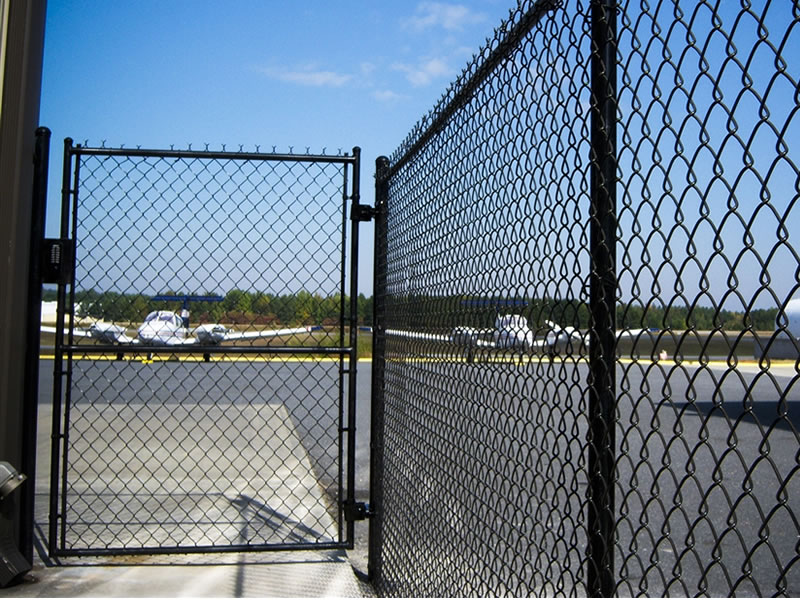

Coated chain link fence panels with gates

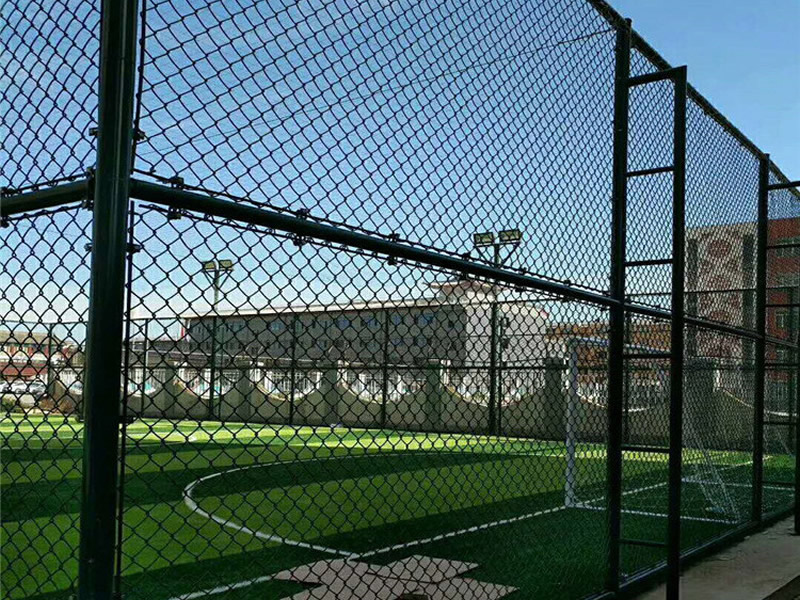

PVC coated chain link fence for stadium

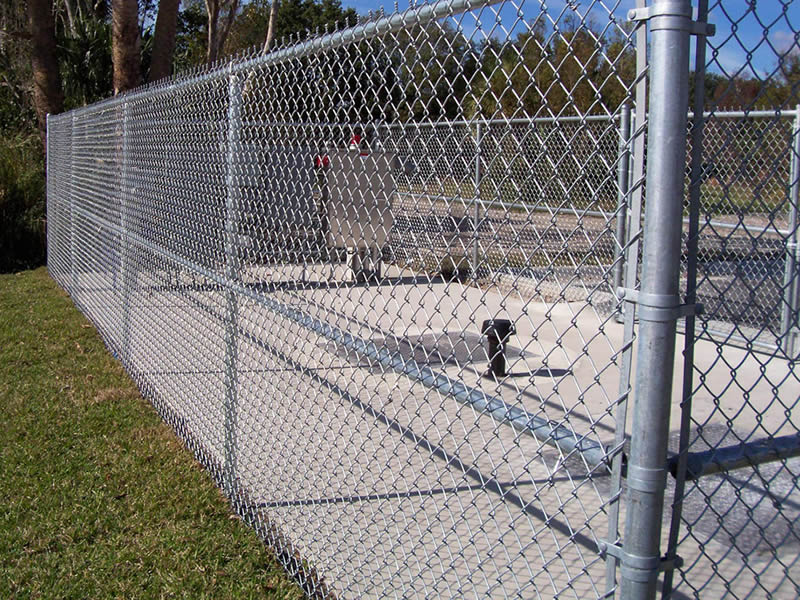

Industrial galvanized chain link perimeter fence

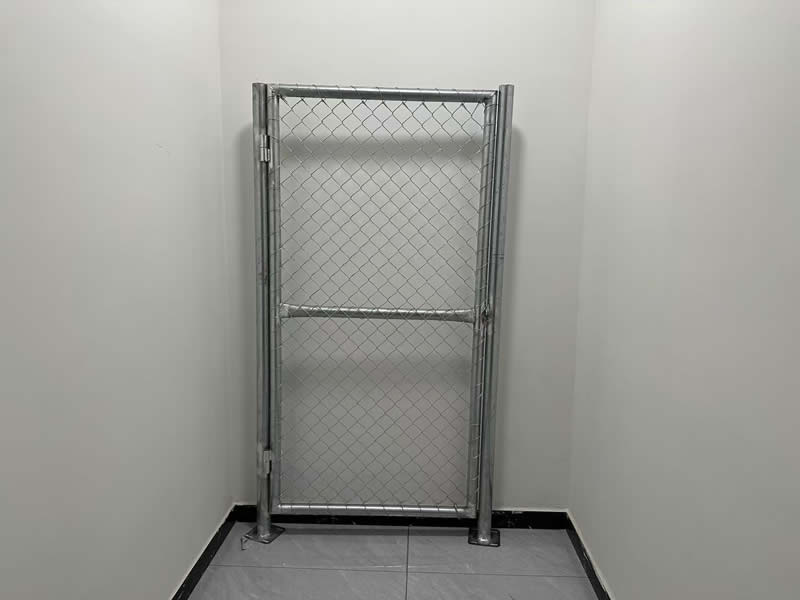

Galvanized chain link fence gates
