Temporary Fence: Movable Welded Wire Mesh Panels with Steel Frames for Site Security
Temporary fence is a freestanding, movable fencing system used to secure construction sites, public events, roadworks, or restricted areas. It is typically made of welded wire mesh panels with steel frames, supported by heavy-duty bases and secured with clamps. Common classifications include standard mesh panel fence, anti-climb fence, and crowd control barriers. Features include quick installation, reusability, corrosion resistance through galvanization or powder coating, and optional accessories like wind braces or privacy screens. Temporary fencing provides safety, access control, and perimeter security without permanent installation, making it suitable for short-term projects or mobile applications.
Specifications
1. Panel Dimensions
- Height: 1800 mm / 2000 mm / 2100 mm
- Width: 2400 mm / 2500 mm / 3000 mm
- Frame Diameter: 32 mm / 38 mm / 42 mm OD (Outer Diameter)
- Wall Thickness: 1.4 mm / 1.5 mm / 2.0 mm
2. Wire Mesh Infill
- Wire Diameter: 3.0 mm / 3.5 mm / 4.0 mm
- Mesh Opening: 60 mm x 150 mm / 75 mm x 75 mm / 100 mm x 200 mm
- Welding Style: Electric resistance welded (ERW)
- Mesh Style: Rectangular or square pattern
3. Base/Feet Types
- Material: Heavy-duty plastic or steel
- Plastic Base Size: 600 mm x 230 mm x 150 mm (filled with concrete)
- Steel Base Size: 600 mm x 150 mm x 150 mm (hot-dip galvanized or powder-coated)
- Base Weight: 20–30 kg (depending on material)
4. Surface Treatment
- Galvanized Coating:
- Pre-galvanized: 14–20 microns zinc
- Hot-dip galvanized: ≥ 42 microns (≥ 300g/m²)
- Powder Coated: Optional (colors available: yellow, orange, green, red, etc.)
5. Accessories
- Clamps: Steel brackets with bolts & nuts (hot-dip galvanized or zinc-plated)

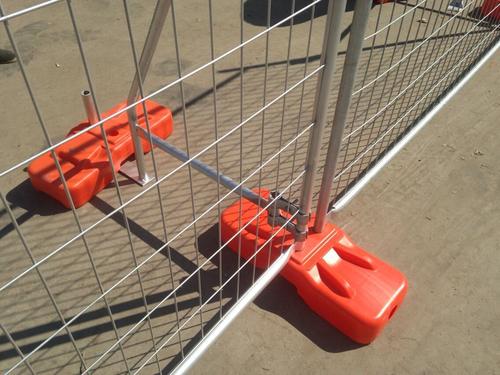

- Stays/Braces: 600 mm / 900 mm / 1200 mm for wind load support
- Anti-lift/Anti-climb Options: Optional barbed wire or vertical extension
Applications
- Construction site perimeter control
- Public event crowd control
- Roadwork and roadside fencing
- Temporary animal enclosures
- Emergency barriers and disaster response
- Security fencing for restricted access areas

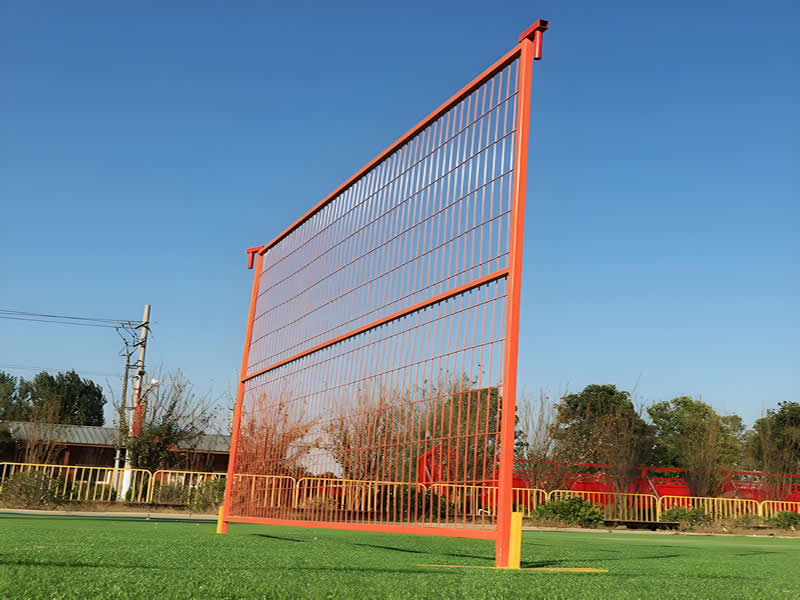

Orange Temporary construction fence panels

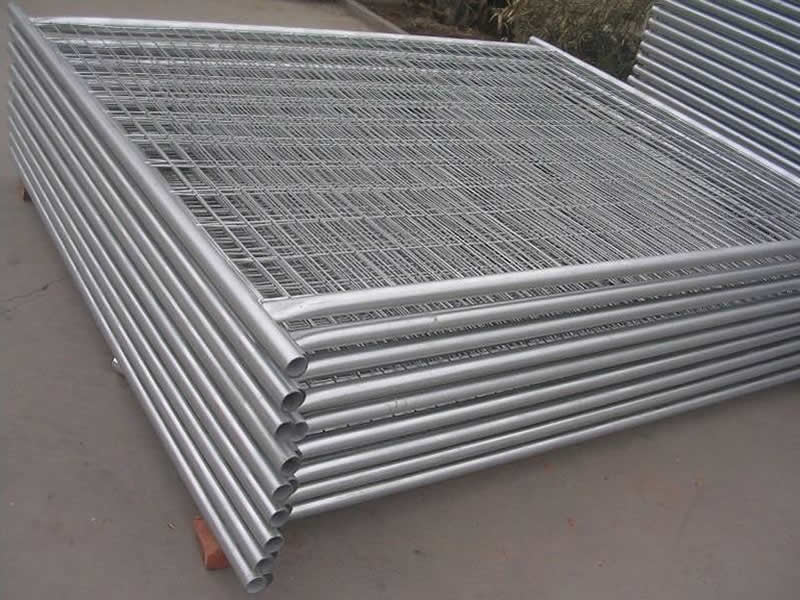

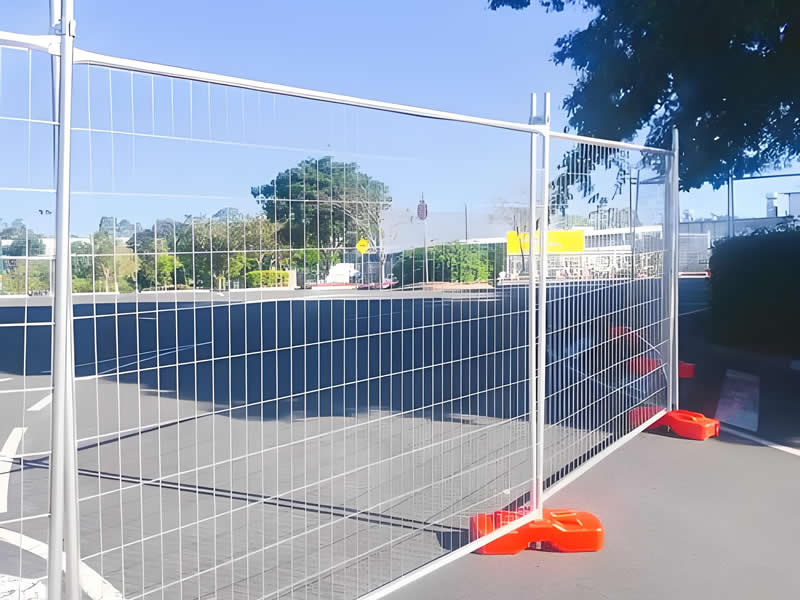

Hot-dipped galvanized portable fencing

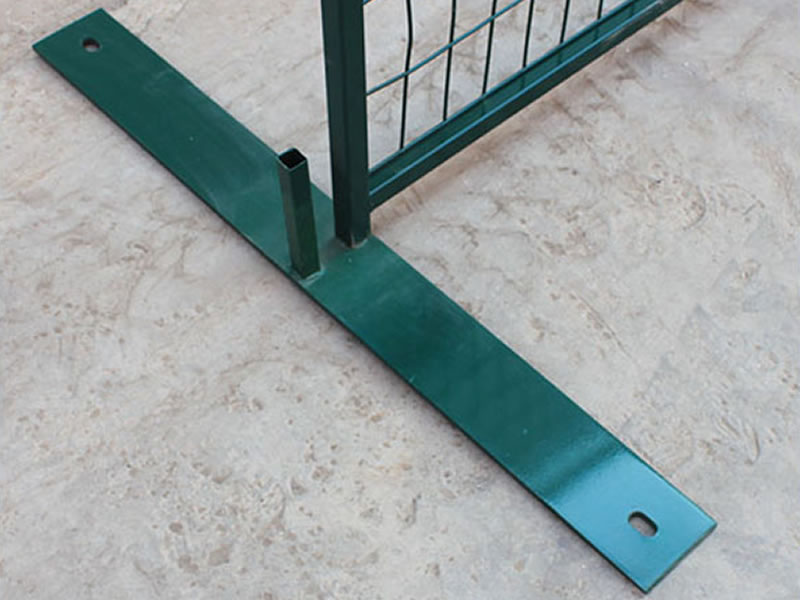

Green Powder Coated Steel Base

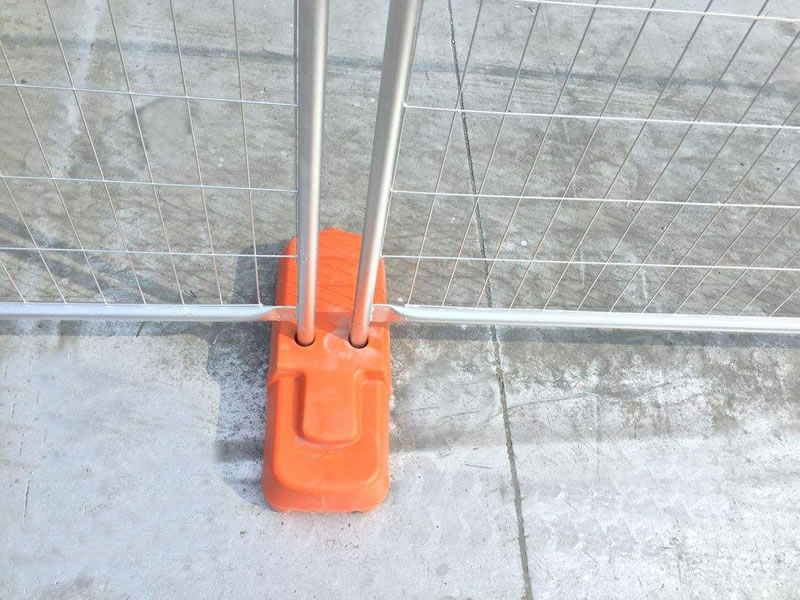

galvanized temporary Fence Plastic Base
Steel temporary fence with powder-coated frame
